AMBLUX

Smart wall switch control module

Smart wall switch control module

Introducing our latest Versatile Connectivity Box, designed to enhance your smart home experience by seamlessly integrating with our three Bluetooth wall switches, mini remote control, and wireless door sensor. With our dedicated application, you can easily connect and control your devices from the convenience of your smartphone.

Key Features:

  • Memory Function: The box retains the last programming even after power interruptions, ensuring your settings are always ready to go.
  • Multi-Switch Capability: Program up to eight wall switches with a single receiver, allowing extensive control across your home.

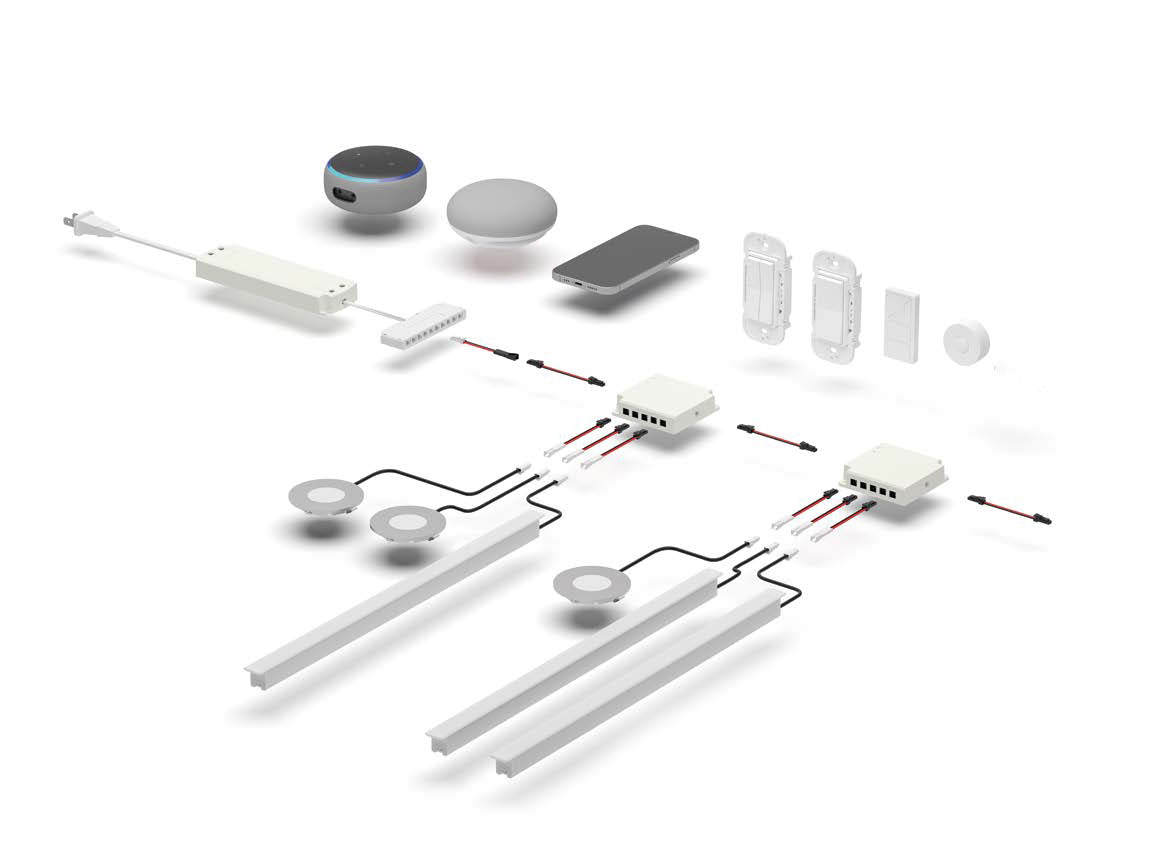

  • Daisy-Chain Installation: Enjoy flexible installation options. Multiple receivers can be daisy-chained to a single power supply or positioned within the same room to effortlessly manage various zones.
  • Robust Compatibility: Compatible with all three of our RF series smart switches, this box is the perfect companion for your smart home devices.

Additional Specifications: 2.4G Mesh + Sensor Single Color LED Controller

  • Frequency: Operates at 2.4GHz for radio communication.
  • Dual Control Options: Easily managed through both a smart app and remote controls without the need for a gateway for local operation.
  • Simple Pairing: Quickly connect to the smart app by pressing the Prog. button.
  • Mesh Networking: Enjoy extended control range as this mesh network transmits signals to neighbouring devices.
  • Transmission Distance: Each controller can communicate over distances of up to 98 feet (30 meters) from neighbouring controllers.
  • Secure Communication: Features encrypted two-way communication for quick status updates and reliable data transmission.
  • Cloud Access: Remote control capabilities are available, compatible with Amazon Alexa and Google Home for convenient voice command operation.
  • Installation Note: Ensure that power is off during installation and avoid exposing the device to moisture.

Elevate your home automation system with our Versatile Connectivity Box, where convenience meets innovation!

Low voltage plug
 2-pin 24 V
Input ports
 1 x plug, 2-pin 24 V
Power rating
 Max 96 W depends on the wattage of the LED driver
Voltage 24 V
Area of application For on/off switching and dimming (0–100 %)
Color/finish
 White
Dim. (L x W x H)
 70 x 70 x 16 mm
Installation
  Plugged directly to driverport
Distance between controls max.
 30.00 m
Scope of delivery
 1 control unit and low-voltage wiring
Switching function
 Programmable with app, wall switches or remote
View full details

Step one: select the driver

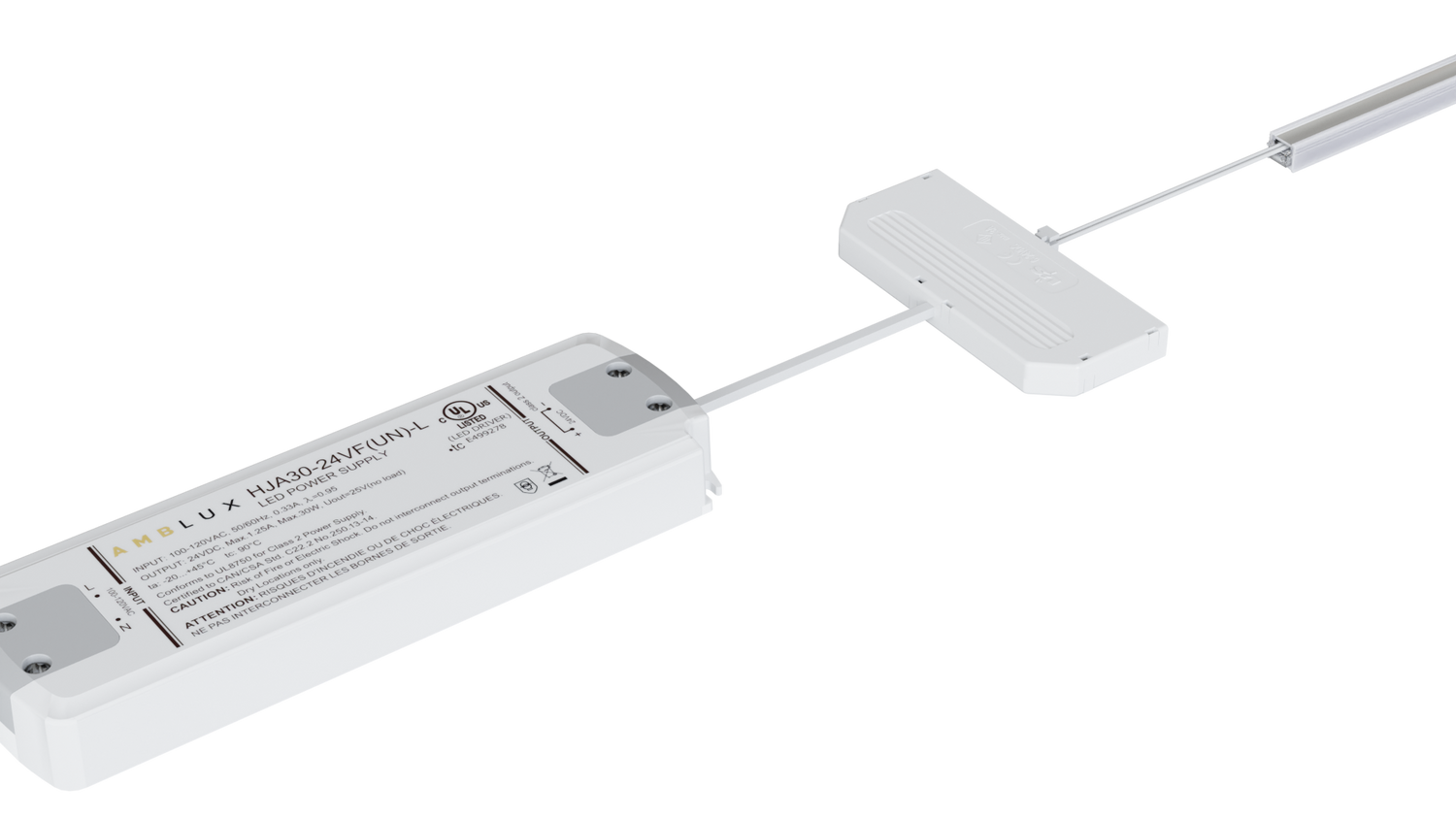

Ultra-thin, fixed-intensity 24V LED power supply

Discover our ultra-thin 24V LED power supply featuring a non-variable current designed for efficiency and convenience. Classified as Class 2, this independent constant voltage driver series

Select a ultra-thin 24V LED power supply

Step Two: Select the Switch or remote

Wall Switch or Remote

Select either one of the Self-Powered Bluetooth Switch, one of the battery-operated options or control your installation with the App

Switches or remotes
